Connections Page Overview
While your flows are the heart of your automations, nothing can run without properly configured connections. Connections are what link your Noca AI flows to external apps, systems, and services — enabling data to flow, actions to be triggered, and automations to succeed.
Without at least one authenticated connection, flows that rely on external apps will not function.
Watch & Learn
Accessing the Connections Page
To reach this screen:
Navigate via the left drawer menu
Go to Flows > Connections

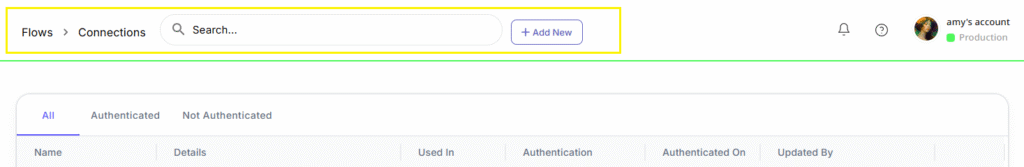

Header Tools
At the top of the screen, in the Header Bar, you’ll find:
Breadcrumb
Showing your location in the app
Search Box
To find a specific connection by name or description
Add New
Button to create a new connection

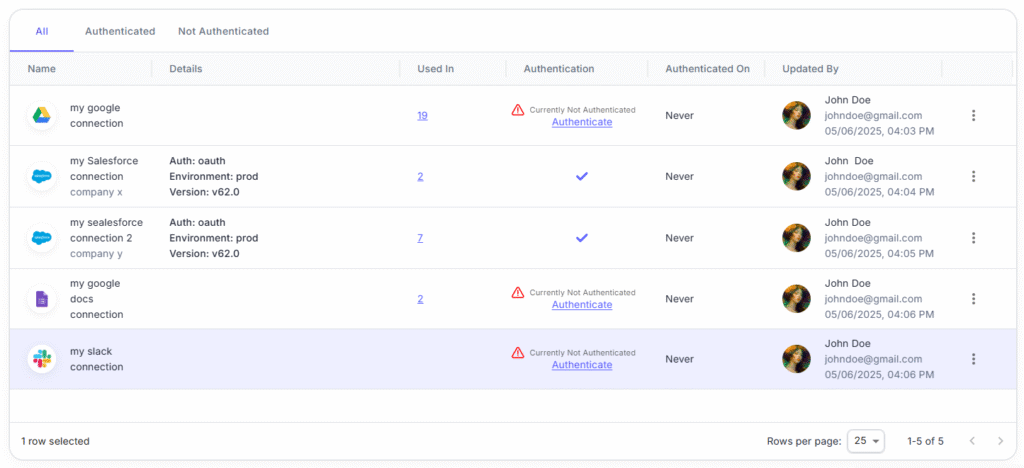

Connections Table Area
The main section of the screen displays a table with all your configured connections.

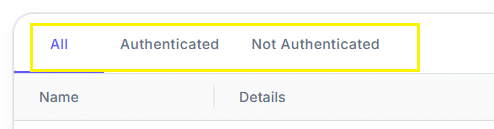

Tabs at the Top
All Connections
Shows every connection in the environment
Authenticated Connections
Connections that are currently active and valid
Not Authenticated Connections
Connections that require re-authentication or setup

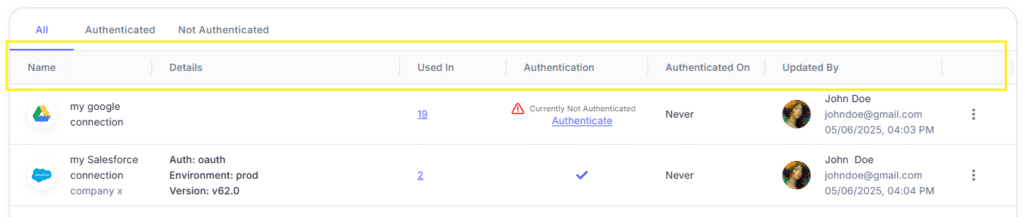

Table Columns
Each row represents a single connection and includes:
Connection Name & Description
Along with the app/system logo for quick recognition
Details
A clickable view to see connection-specific metadata
Used In
Number of flows that use this connection
Authentication Status:
- A purple check icon for authenticated connections
- An alert icon and label: “Currently Not Authenticated” with a link to
Authenticated On
Date of last successful authentication, or “Never”
Updated By
The user who last modified the connection, including:
- Name
- Timestamp
Kebab Menu (⋮)
Action menu with options:
- View Details
- Edit
- Delete
- Revoke Access
- Re-authenticate
